VF | KYOSEI, suppliers of gas and water piping materials, including pipes, valves, and governors
〈SGP-VS, WSP041〉

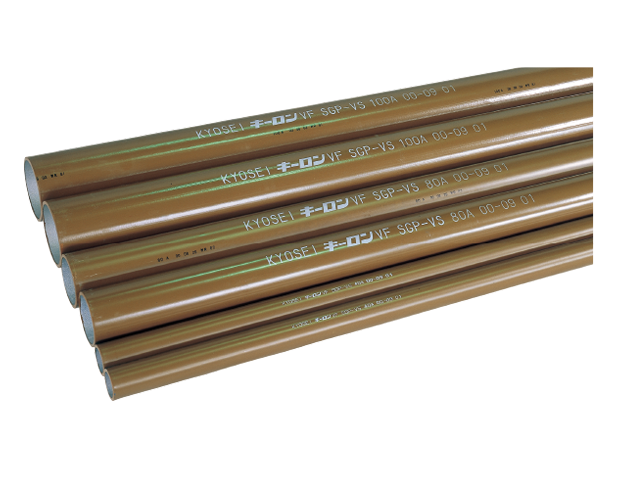

Carbon steel pipe for ordinary piping (JIS G 3452) with its outer surface coated with hard PVC. Fire-fighting purpose piping materials complying with standard specifications for public buildings.
Standard product under Japan Water Steel Pipe Association (WSP041).
Specifications
* Scroll the page right or left to view the complete table.
Unit: mm
| Nominal dia. (A) |
Approx. OD |
Outer surface coating thickness |
Length |
Approx. ID |
| 20 |
31.0 |
1.5 or more |
4000 |
21.6 |
| 25 |
37.8 |
1.2 or more |
27.6 |
| 32 |
46.3 |
35.7 |
| 40 |
52.0 |
41.6 |
| * 50 |
63.7 |
52.9 |
| * 65 |
79.5 |
67.9 |
| * 80 |
92.3 |
80.7 |
| * 100 |
118.3 |
1.5 or more |
105.3 |
| 125 |
143.8 |
130.8 |
| 150 |
170.2 |
155.2 |
| 200 |
221.3 |
204.7 |
Note: 200A can be produced to order.
* Threaded type is available
