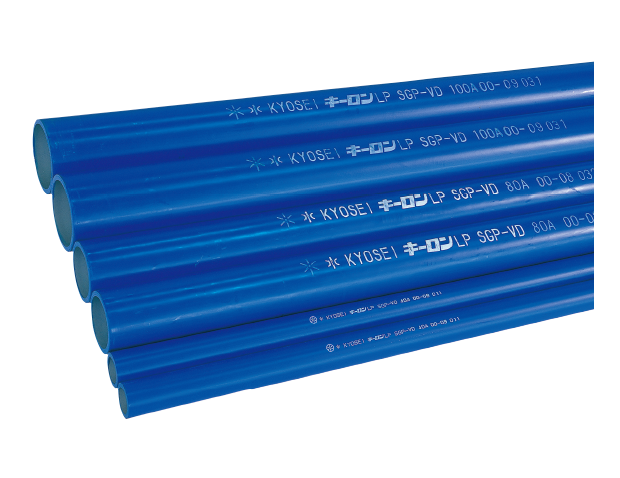

LP SGP-VD | KYOSEI, suppliers of gas and water piping materials, including pipes, valves, and governors
Standard product under Japan Water Works Association (JWWA K 116).
Water supply piping material made of JIS G 3452 steel pipe with its inner/outer surfaces coated with hard PVC.
Excellent corrosion, chemical, and insulation resistance. Small friction resistance of PVC inner lining eliminates changes to flow rate.
Standard product under Japan Water Works Association (JWWA K 116).
Specifications
* Scroll the page right or left to view the complete table.
Unit: mm
| Nominal dia. (A) |
Approx. OD |
Outer surface coating thickness |
Inner surface coating thickness |
Length |
Approx. ID |
| 15 |
25.7 |
1.5 or more |
1.5 |
4000 |
13.1 |
| 20 |
31.0 |
18.6 |
| 25 |
37.8 |
1.2 or more |
24.6 |
| 32 |
46.3 |
32.7 |
| 40 |
52.0 |
38.6 |
| 50 |
63.7 |
49.9 |
| 65 |
79.5 |
64.9 |
| 80 |
92.3 |
2.0 |
76.7 |
| 100 |
118.3 |
1.5 or more |
101.3 |
| 125 |
143.8 |
126.8 |
| 150 |
170.2 |
2.5 |
150.2 |
