VI
(steel pipe with its outer surface coated with rigid PVC)

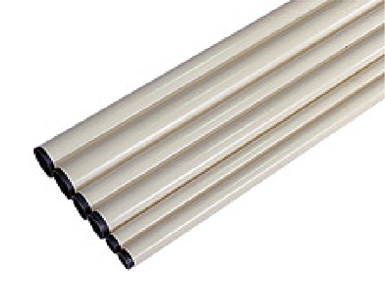

VI (steel pipe with its outer surface coated with rigid PVC)

Carbon steel pipes for ordinary piping (JIS G3452) with rigid PVC coating provides excellent corrosion, chemical, and insulation resistance. Anti-corrosion steel pipe suitable for under and above ground piping.

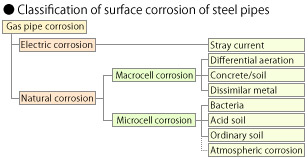

  • Excellent corrosion, chemical, and insulation resistance
    Excellent corrosion, chemical, and insulation resistance
  • Excellent weather resistance
    Excellent weather resistance
  • No worries about pinholes, cracks, or peeling
    No worries about pinholes, cracks, or peeling
  • Easy installation
    Easy installation

Specifications

* Scroll the page right or left to view the complete table.

Unit: mm

Nominal dia. (A) Approx. OD Outer surface
coating thickness		 Length Approx. ID [ref.]
15 25.7 2.0 4000
5500		 16.1
20 31.0 1.9 21.6
25 37.8 27.6
32 46.3 1.8 35.7
40 52.0 1.7 41.6
50 63.7 1.6 52.9
65 79.5 67.9
80 92.3 80.7
100 118.3 2.0 105.3
125 143.8 5500 130.8
150 170.2 2.5 155.2
200 221.3 4000 204.7

Note 1: Outer surface coating using JIS K 6720 rigid PVC is made over the original pipe, JIS G 3452 standard pipe with either galvanized or anti-corrosion coating.
Note 2: 125-200A can be produced on order.
