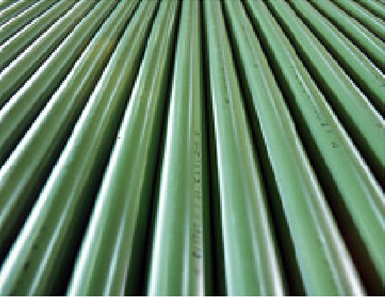

Carbon steel pipe for ordinary piping (JIS G3452) with its outer surface hot-melt coated with polyethylene resin provides excellent physical properties and satisfies all corrosive resistance properties required for underground installation.
Specifications
* Scroll the page right or left to view the complete table.
Unit: mm
| Steel tube dimensions |
Jacket thickness |
Adhesive thickness |
Approx. OD [ref.] |
| Nominal dia. (A) |
Length |
Film thickness |
(Target value) |
| 15 |
5500 |
2.0 |
0.2 |
25.7 |
| 20 |
31.2 |
| 25 |
1.8 |
37.6 |
| 32 |
46.3 |
| 40 |
52.2 |
| 50 |
64.1 |
| 65 |
79.9 |
| 80 |
92.7 |
| 100 |
2.0 |
118.3 |
Note: Products are without threads. White and black are available.
Note: Length 4000 type can be produced to order.
